FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories
FH12-8S-1SH(55)
CONN FFC BOTTOM 8POS 1.00MM R/A
FH34SRJ-18S-0.5SH(99)
CONN FFC FPC 18POS 0.50MM R/A
XF3H-4555-31AR
CONN FPC BOTTOM 45POS 0.30MM R/A
5022312400
CONN FFC VERT 24POS 0.50MM SMD

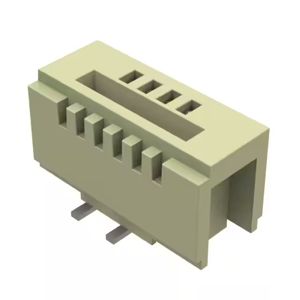

CF16041M0R0-NH
CF16 SERIES 1.00MM(.039") LIF TO
046232103015800+
CONN FFC FPC VERT 3POS 1MM SMD
6-520315-1
CONN FFC VERT 11POS 2.54MM PCB
SLW16R-1C7LF
CONN FFC BOTTOM 16POS 1.00MM R/A
SFW8R-1STAE1LF
CONN FPC BOTTOM 8POS 1.00MM R/A
IMSA-11600S-15D-GFN4
CONN FFC VERT .5MM 15POS
XF3M(1)-0715-1B-R100
CONN FPC 7POS 1MM PITCH SMD

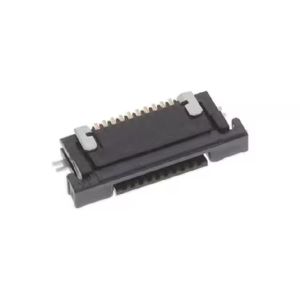

SFV10R-1STBE1HLF
CONN FFC BOTTOM 10POS 0.50MM R/A
62674-211121ALF
CONN FFC VERT 21POS 0.50MM SMD
62684-50210E9ALF
CONN FPC TOP 50POS 0.50MM R/A
F31K-1A7H1-11024
FLEX CONNECTOR, 0.50MM PITCH, HE
2-1734742-8
CONN FFC VERT 28POS 0.50MM SMD
54104-3831
0.5 FPC ZIF SMT R/AUPRCONT38CKTE
2-84953-7
CONN FPC TOP 27POS 1.00MM R/A
046810640023846+T
CONNECTOR 6810 SERIES
686122188622
WR-FPC_1.00 MM SMT HORIZONTAL LI
