Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
42506-2
CONN QC TAB 0.250
170030-2
CONN QC TAB 14-20AWG 0.250 CRIMP

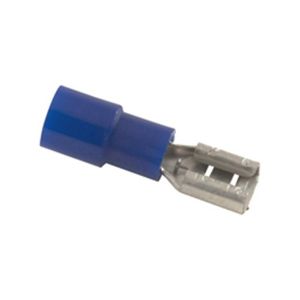

76-NIFD16-250C
NYLON INS FEMALE DISCONN 100 BAG
4905
CONN QC TAB 0.205 SOLDER

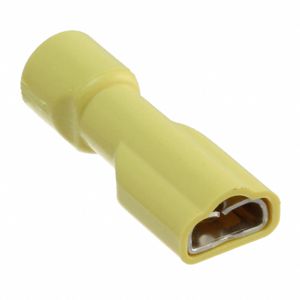

DPF10-250FI-D
CONN QC RCPT 10-12AWG 0.250
63756-1
CONN QC TAB 0.110 SOLDER
1969106-2
187 ULTRA-POD FLAG 22-18 TPBR
41728
CONN QC RCPT 12-16AWG 0.250
0190020014
CONN QC RCPT 18-22AWG 0.110
0190180044
CONN QC RCPT 24-26AWG 0.187
62806-1
CONN QC RCPT 0.250 SOLDER
0196060003
CONN QC RCPT 10-12AWG 0.250
DNF10-250FIMB-K
CONN QC TAB 10-12AWG 0.250 CRIMP
0190020045
CONN QC RCPT 10-12AWG 0.250
42822-4
CONN QC TAB 0.250
19019-0015
AVIKRIMP QUICK DISCONNECT, FEMAL
160759-4
CONN QC RCPT 16-20AWG 0.250
1217107-1
CONN QC RCPT 0.250 SOLDER

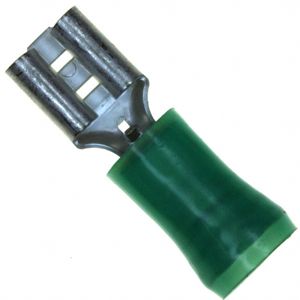

42844-1
CONN QC RCPT 12-14AWG 0.250
42068-1
CONN QC RCPT 18-22AWG 0.110
