Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
5-160321-2
CONN QC RCPT 20-22AWG 0.110
8276
CONN QC RCPT 18-22AWG 0.187
1217027-1
CONN QC RCPT 14-18AWG 0.187
9-520124-2
CONN QC RCPT 14-16AWG 0.187
MU14-250DFX
CONNQCRCPT14-16AWG 0.250 1=100PC
76-IMD22-187C
PVC INS MALE DISCON 22-18 100 BA
160773-3
CONN QC RCPT 15.5-20AWG 0.250
DNF14-250FIMB-Q
CONN QC TAB 14-16AWG 0.250 CRIMP
170330-1
CONN QC RCPT 20-24AWG 0.187
170001-3
CONN QC TAB 0.187
926790-4
CONN QC RCPT 13.5-17AWG 0.250
520971-1
CONN QC RCPT 14-18AWG 0.250
66023-4
CONN QC TAB 16-22AWG 0.250 CRIMP

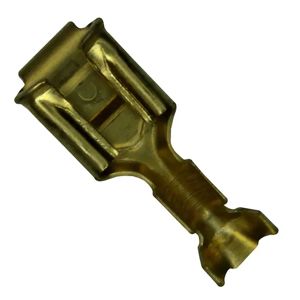

62109-1
CONN QC RCPT/TAB 14-18AWG 0.250
170122-2
CONN QC RCPT 18-22AWG 0.205
640902-1
CONN QC RCPT 18-22AWG 0.250
DNF18250FIBX-2K
CONN QC RCPT 18-22AWG 0.250
0197054001
CONN QC TAB 0.250 SOLDER
19019-0034
AVIKRIMP QUICK DISCONNECT, FEMAL
928931-2
CONN QC TAB 17-20AWG 0.110 CRIMP
