FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

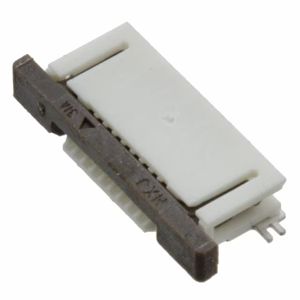

0527460971
CONN FFC BOTTOM 9POS 0.50MM R/A

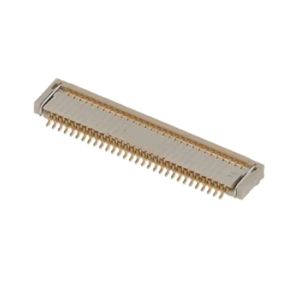

10051922-3010EHLF
CONN FPC BOTTOM 30POS 0.50MM R/A

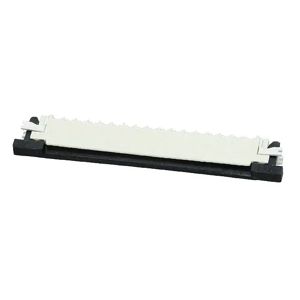

686116183422
CONN FFC TOP 16POS 1MM SMD R/A

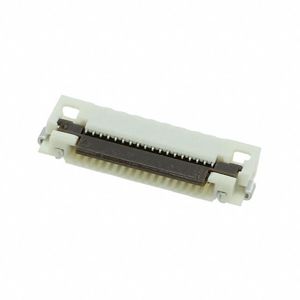

0528921833
CONN FFC BOTTOM 18POS 0.50MM R/A

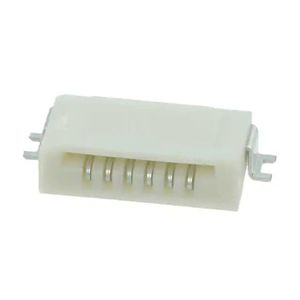

0528520670
CONN FFC BOTTOM 6POS 1.00MM R/A

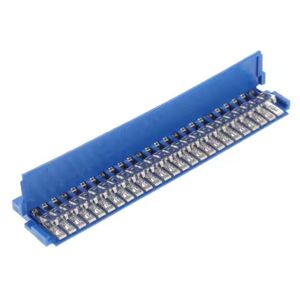

65801-025LF
CONN FFC FPC RCPT 25POS 2.54MM

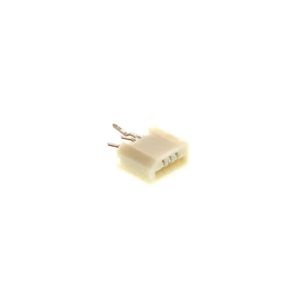

0528060310
CONN FPC VERT 3POS 1.00MM PCB

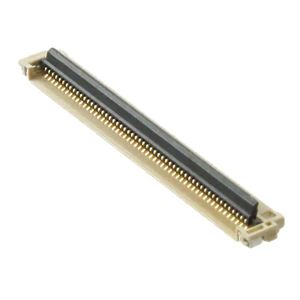

0512965494
CONN FFC BOTTOM 54POS 0.50MM R/A

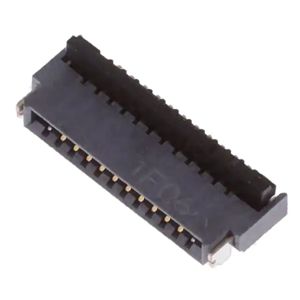

FH34D-10S-0.5SH(50)
CONN FFC/FPC 0.5MM R/A SMD 10POS

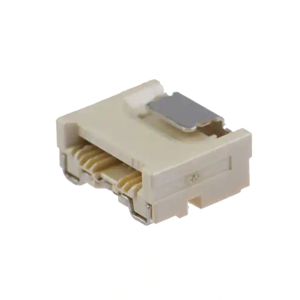

IMSA-11501S-08D-GFN1
CONN FFC R/A .5MM 8POS

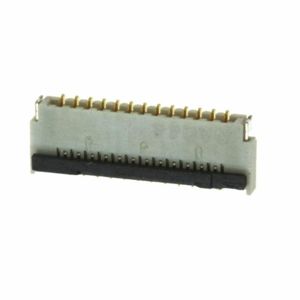

FH39-25S-0.3SHW(10)
CONN FPC 25POS 0.30MM R/A

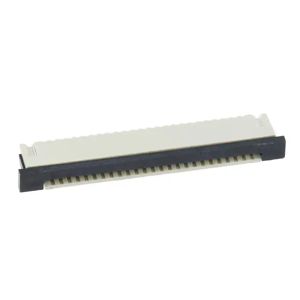

ZF1-25-01-T-WT
CONN FFC BOTTOM 25POS 1.00MM R/A

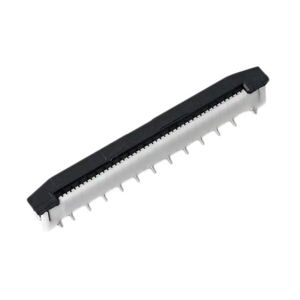

686118183822
CONN FFC VERT 18POS 1MM SMD

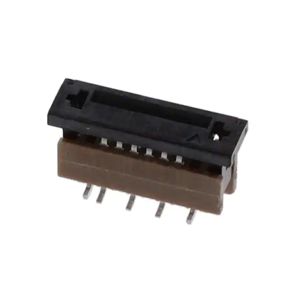

SFW6S-2STME1LF
CONN FFC FPC VERT 6POS 1MM SMD

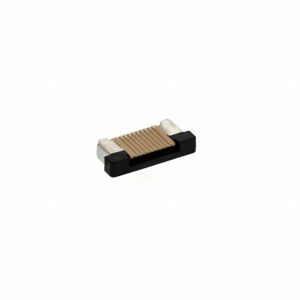

ZF5S-10-02-T-WT
ZERO INSERTION FORCE .5MM ASSEMB

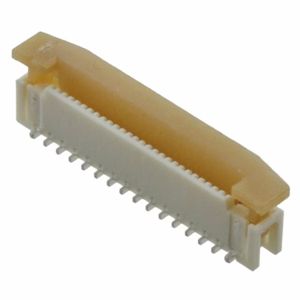

0525592752
CONN FFC VERT 27POS 0.50MM SMD

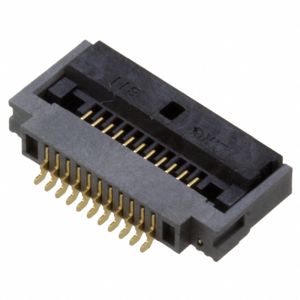

FH52-11S-0.5SH(99)
CONN FFC BOTTOM 11POS 0.50MM R/A

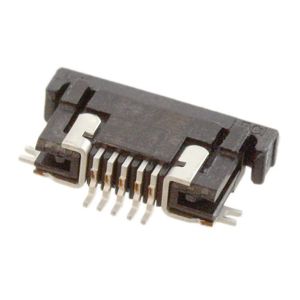

SFV5R-1STE1HLF
CONN FFC BOTTOM 5POS 0.50MM R/A

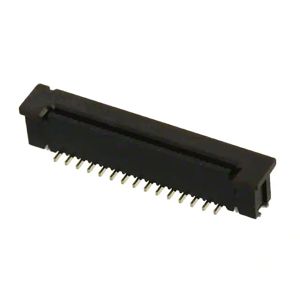

3-1734742-0
CONN FFC VERT 30POS 0.50MM SMD

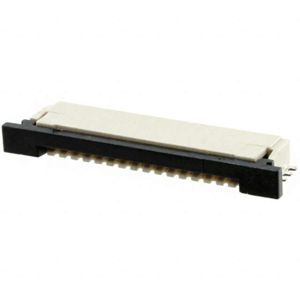

1-84952-5
CONN FPC BOTTOM 15POS 1.00MM R/A
